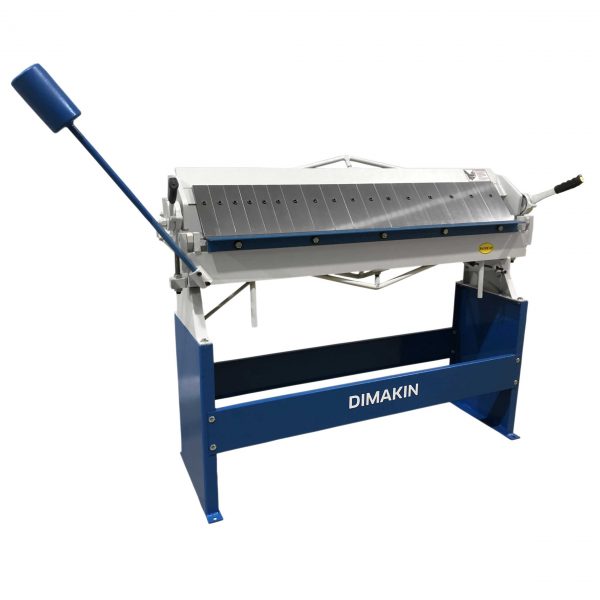

Box and Pan Folder BP-1316

£1,535 Plus VAT

Free UK Delivery

Finance Available Over £3,000
Download Specifications

Available on back-order

  • 12 months

  • UK

  • Technical


The Box and Pan Folder BP-1316 from DIMAKIN is the perfect entry level machineAn extremely effective tool despite its size and can be mounted on a bench or on the supplied stand

Despite its size, the BP-1316 is capable of bending 1.6mm of mild steel across its entire length of 1270mm (50”). In addition to this, the Box and Pan Folder BP-1316 comes with 16 machined and hardened fingers of varying size that allow the operator to configure the folding edge precisely to the exact application. Further features of this impressive equipment are its reinforced apron, complete with a single counterweight to assist the operator when folding thicker material, and an integrated stop-rod for repeatability, too.

As is clear, the Box and Pan Folder BB-1316 is a must have box and pan folder for those looking for an entry into sheet metal folding and beyond.

For more information, call (+44) 02476 210 123 today! Alternatively you could contact us via the Product Enquiry button!


Box and Pan Folder BB-1316 FEATURES:

  • Manually operated
  • 0° – 135° bending
  • Bench or stand mounted
  • 16 machined and hardened adjustable fingers
  • Reinforced apron for zero flex
  • Bend assist counterweight
  • Economical design

In addition to this machine, check out the full range of sheet metal Box and Pan Folders!

For more information, call (+44) 02476 210 123 today!


Bending length1270mm
Bending capacity (mild steel)1.6mm
Maximum lift of beam44mm
Beam adjustment16mm
Shipping dimensionsTBA
Shipping weight230kgs
